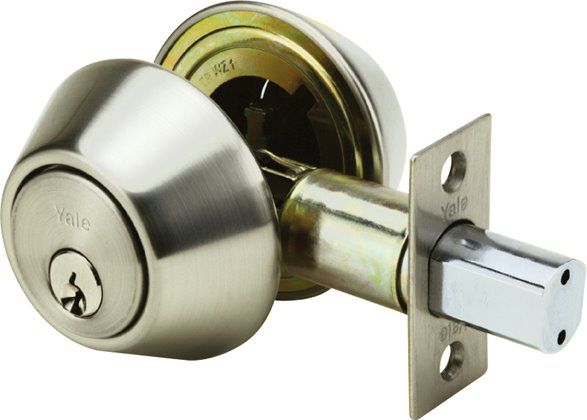

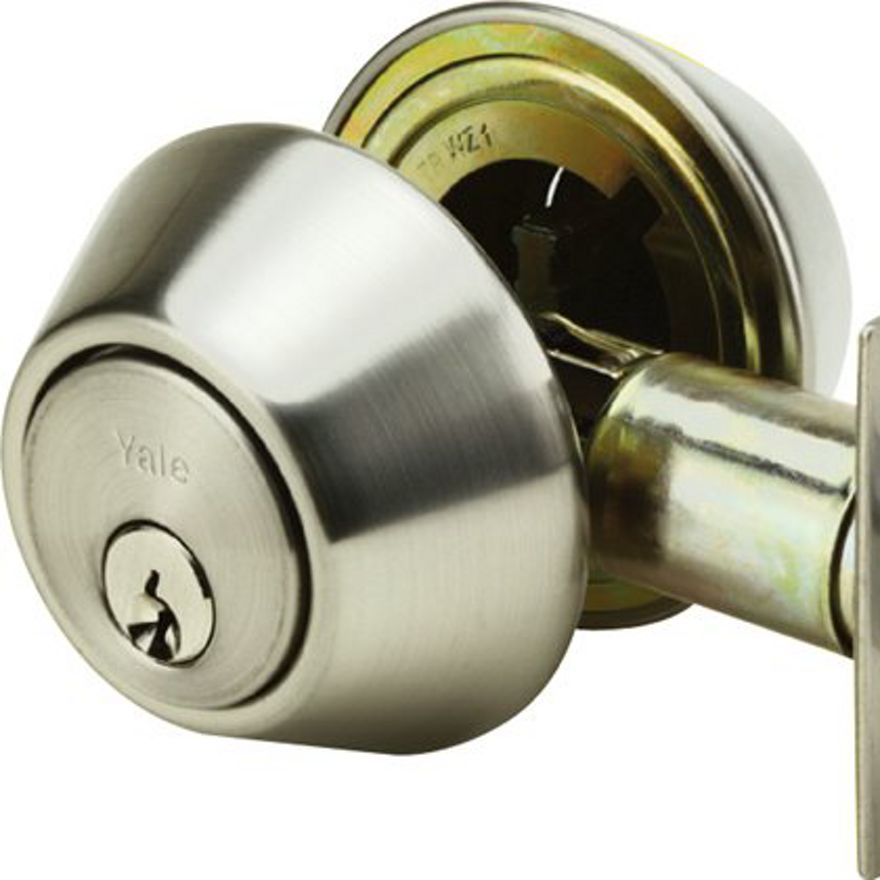

V8121 - Standard Duty Deadbolt

Model No.	Function code	Finish Code	Backset	Door Thickness
81	11 - Single Cylinder with Thumb turn	US3 - Polished Brass	60 mm/ 70 mm	35 mm- 45 mm
		US5 - Antique Brass
	21 - Double Cylinder Deadbolt	US11 - Antique Copper
		US32D - Stainless Steel

8121 - Standard Duty Deadbolt

Standard :	ANSI / BHMA A156.5.2001
Testing Cycles :	100,000 cycles
Materials :
	- Chassis : Steel
	- Latch & Bolt : Zinc
	- Cylinder Housing : Steel
	- Rose : Brass
Backset :	60mm/ 70mm
Door Thickness :	35-50 mm
Function :	Residential applications
Anti-Sawing Insert :	Hardened steel
Cylinder :	Solid brass 5-pin tumble cylinder
No. of Keys :	3 pcs of nickle plated brass key
Finishes :	US3 - Polished brass US5 - Antique brass US11 - Antique copper US32D - Satin Stainless Steel
